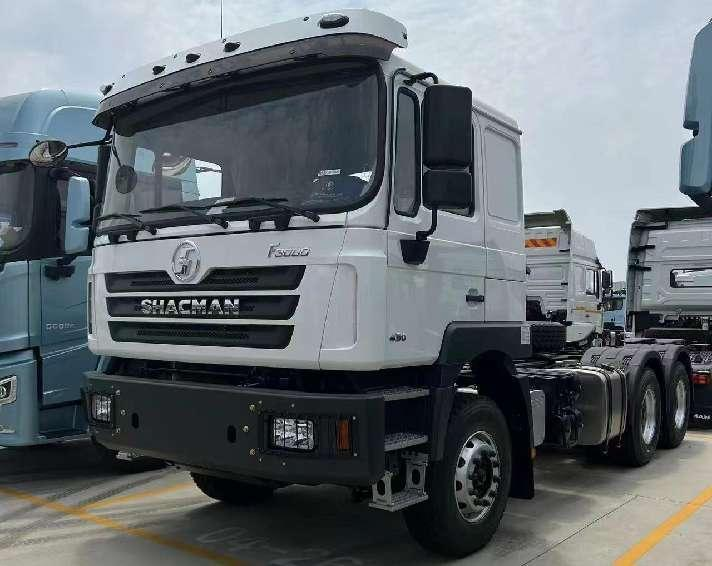

Shaanxi Auto Delong F3000is a tractor that performs exceptionally well in overseas markets. The following is some common introduction about the Shaanxi Auto F3000 tractors exported abroad:
Cab: It adopts the technical framework of the German MAN F2000, with an elegant and classic appearance. Some export models may have differences in details from the domestic version, such as the removal of clearance lamps on the rearview mirrors, while the center grille has the “SHACMAN” logo, etc.
Chassis and superstructure: Some exported Shaanxi Auto Delong F3000tractors are specially modified vehicles for specific transportation needs. For example, there is a folding type wood transporter for transporting logs. The appearance size of its chassis vehicle is relatively large. After loading the superstructure equipment, the trailer can be folded and stored on the main vehicle to increase the trafficability when entering the forest area. The rear end of the girder of such vehicles is equipped with a trailer hook, and the electrical circuit interface is arranged on the rear tail beam.
Power configuration: Usually, engines such as Weichai or Cummins are installed. For example, a wood transporter uses Weichai WP12 Blue Engine, with a horsepower of up to 430, and the emission standard is National III and below. It can adapt to relatively poor fuel quality. Its large pump has a simple structure and is easy to maintain.
Gearbox: Most choose Fast gearboxes, such as 12-speed manual gearboxes with synchronizers, iron shells, and direct gear structures, which are more durable.
Rear axle: Generally, it is a hub reduction axle of Hande. The total reduction ratio is large, the distance between the axle body and the ground is relatively high, and the passing performance is strong. Some vehicles are also equipped with inter-wheel differential locks and inter-axle differential locks to enhance the ability to get out of difficult situations.
Tires: The specification may be 13R22.5. Compared with the common 12R22.5 tires, its section width is slightly larger, and the pattern is suitable for harsh road conditions, with good grip and puncture resistance.
Other configurations: The cab of some models may not be equipped with airbag shock-absorbing seats, but ordinary shock-absorbing seats; the windows may be hand-cranked; the electronic equipment in the vehicle is relatively simple, and there may only be digital display air conditioning panels and radios, etc.
However, the specific configuration and characteristics may vary due to the different needs of the export region, regulatory requirements, and the specific use of the vehicle.
For example, the Shaanxi Auto Delong F3000tractor exported to Singapore adopts the ISME4-385 engine of Xi’an Cummins, with a power of 385 horsepower and a torque of 1835N.m. It has two configurations of National III and National IV; the matched one may be a 10-speed or 12-speed manual gearbox of Fast; the chassis adopts a 4×2 drive form, and after Singapore-specific modification, a crash barrier and a high-position brake light are installed behind the cab.
